Easy Drawer Notcher – M312

Download M312 Brochure

EASY Drawer Notcher M312 Details

  • This upgraded model includes EASY Foot Cycle Switch!!!
  • HIGH WEAR Phenolic Top!!!

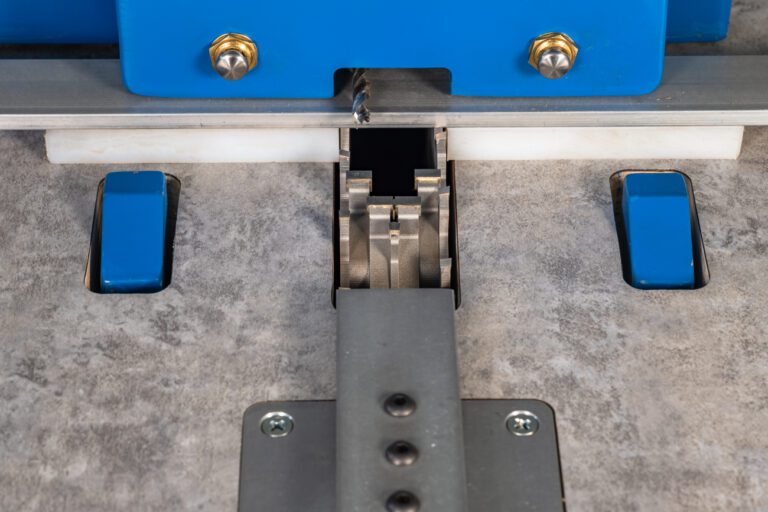

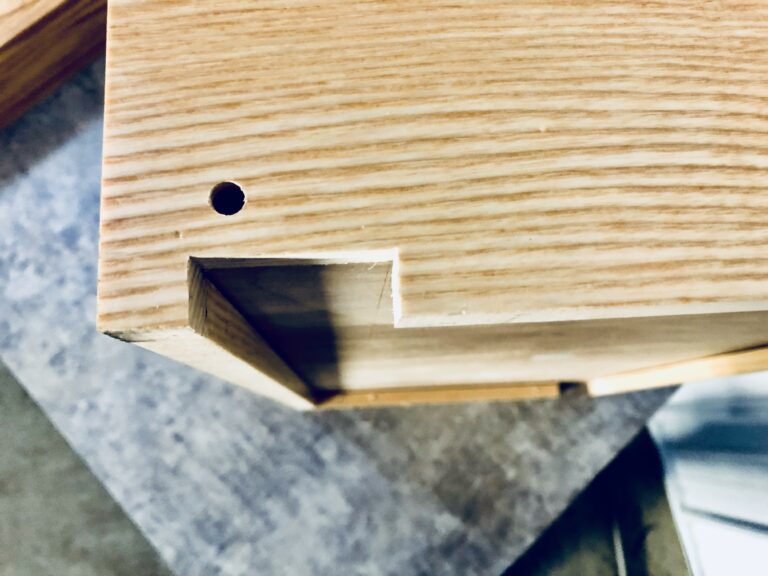

  • Under mount notched and locating hole drilled simultaneously!
  • EASY drawer locating regardless of box width using center stop!
  • LOW MAINTENANCE machine for a GREAT VALUE!
APPLICATION SPECIFICATIONS:
  • Notch Dimension: 35mm W x 1/2″ H
  • Locating Hole Diameter: 6mm
  • Operating Performance: Over 200 boxes per hour
DRIVE PACKAGE SPECIFICATIONS:
  • Main Motor: 1.5 HP
  • Pneumatic Drill Included

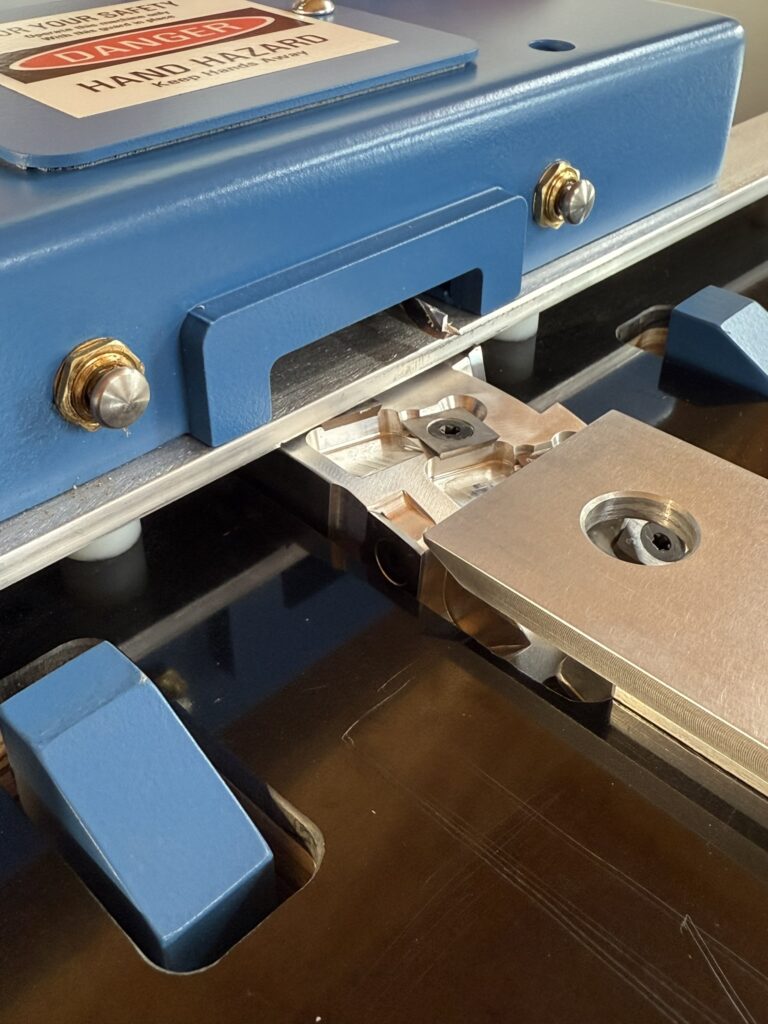

  • Insert Cutterhead
  • Available in 120V and 220V Single Phase, 230V and 460V 3phase, Hydraulic, and Pneumatic Drive Package as well
UTILITY REQUIREMENTS
  • Dust Collection Requirements: 670 CFM, 4″ Outlet
  • Pneumatic Requirements: 90-100 PSI to power drill and control system
DIMENSION SPECIFICATIONS:
  • Table Size: 22″ x 48″
  • Table Height: 36″
  • Footprint: 52″ W x 42″ D X 42″ H
SHIPPING WEIGHT: 625bs
NET WEIGHT: 460lbs
